SMT表面贴装设备

SMT设备

上/下/传板设备

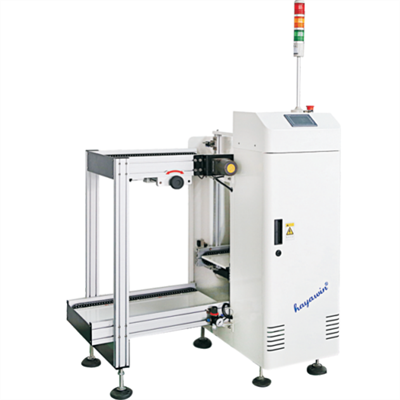

华研自动送板机

HY-250 LD/330LD/390LD/460LD

此设备用于SMT生产线上电路板的上板操作,其特征如下:

1、PLC控制系统

2、控制面板为LED真彩触摸屏

3、步距可分为四种(10,20,30,40mm)

4、可放置二个料架

5、具有防卡板特殊防呆结构

6、方向可选取从左至右或右至左

7、标准配备信号,可与其它设备进行在线接驳

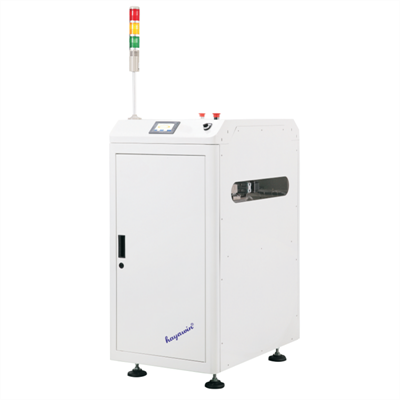

华研自动翻板机

HY-460 Inverter

此设备用于生产线上电路板双面板加工,其特点如下:

1、结实和稳定的设计

2、旋转动力改用180度旋转气缸,比传统马达更平稳

3、PLC控制系统

4、控制面板为LED真彩触摸屏

5、具有直通功能

6、光电感应器控制起始

7、标准配备信号,可与其它设备进行在线接驳

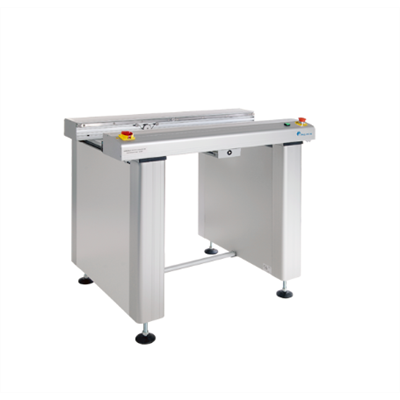

Nutek PCB传板机

NTM0401-M/L

This unit is used as a buffer between SMD machines.

  1. Modular Design

  2. Stability Enhance by 'robust design'

  3. Laser carved stainless steel side guides for superior quality and durability

  4. Ergonomically designed arm rest

  5. Smooth and parallel width adjustment

  6. Multi-zone concept available upon request

  7. SMEMA compatible

  8. Patented (SG Patent No. 91261)

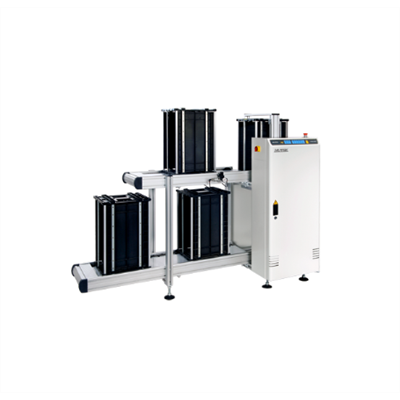

Nutek PCB上下板机

NTM0100LM (Loader)/NTM0100LL (Loader)/NTM0100UM

This unit is used for loading or unloading of PCBs.

  1. Sturdy and stabe design

  2. User friendly 'soft touch' LED membrane control panel

  3. Pneumatic clamps provided for magazine alignment

  4. Pneumatic pusher's pressure regulated

  5. High throughput with short magazine change-over time

  6. SMEMA compatible
