半导体设备

压力炉

压力炉

SAMP+201

销售区域:All

1.  PERFECT LOCK OF PRESSURE CHAMBER DOOR


2.  Use mechanical pressure switch


3.  Safety valve


4.  Auto pressure vent of the chamber when unexpected power failure


5.  Rapid pressure vent of the chamber by multiple auto valve(four valves) control






资料下载

传输机

Nutek传输机

NTM0401-M-500

销售区域:All

1.  Sturdy and stable design
2.  User friendly “soft touch” LED membrane control panel
3.  Pneumatic clamps provided for magazine alignment
4.  Pneumatic pusher’s pressure regulated
5.  High throughput with short magazine change-over time
6.  SMEMA compatible



资料下载

助焊剂清洗

World Engineering Flux Cleaner

WEFC2500W

销售区域:All

1.    清洗工艺简单,干燥时间短

2.    设备稳定性好

3.    维护简单

4.    设备一次性投资成本低




资料下载

扫描声学显微镜

Hitachi FS-1000Ⅲ

FS-1000Ⅲ

销售区域:All

1.    高精度和高分辨率

2.    高速批量检查

3.    各种分析软件不断深化多样

4.    可操作性强,安全性高



资料下载

切割分选

Rokko RS8000S

RS8000S

销售区域:All

1.    享有专利权的设计
2.    适用于各种产品如:BGA/QFN/LGA/SIP/Flex BGA/Micro SD等
3.    全新的双轨切割技术,相对于单轨切割技术,有至少50%~100%已认可的UPH改良,卓越的生产性能UPH: 高达20000
4.    具有2x2mm的切割分类处理能力
5.    高速运载18个Picker的三条调整线性滑块运输线。
6.    Live-Bug的方向处理方式
7.    噪声级低于70分贝
8.    全套精密的视像检测系统


资料下载

镭射标记/切割

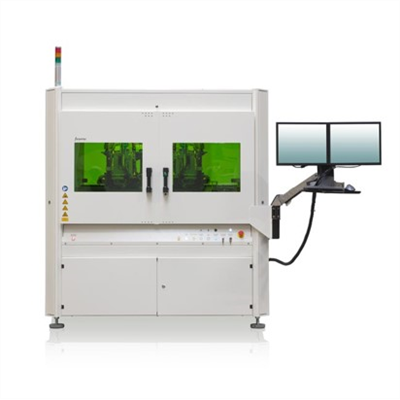

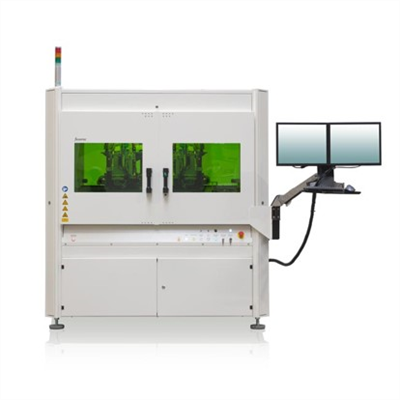

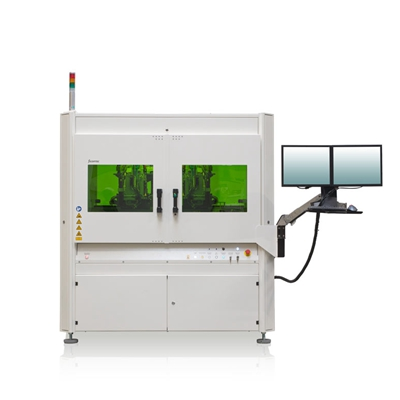

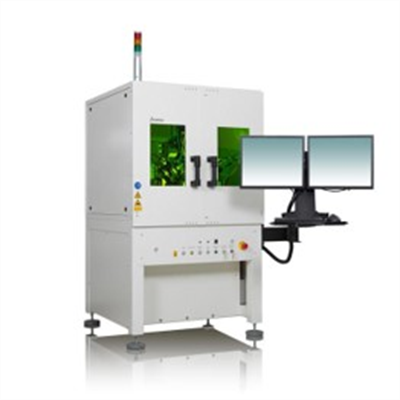

LPKF镭射切割

1000P

销售区域:All

1.    高质量低投入

2.    柔性化生产

3.    切割复杂图形精度高

4.    占地小,能耗低

5.    操作简单



资料下载

等离子清洗机

Nordson March Sphere(WR)

Sphere(WR)

销售区域:All

1.  Dual cassette load station to minimize idle time.
2.  Multi-sizes capable aligner with minimal hardware change-over required.
3.  Robust robotic wafer engine.
4.  Integrated wafer recognition for high reliability wafer handling.
5.  Compact design minimize floor space.
6.  Unique kits allow fast change-over between wafer sizes and supports multi-load for smaller wafer sizes.
7.  Highly uniform treatment and fast throughput.


资料下载

等离子清洗机

Nordson March AP1000

AP1000

销售区域:All

1.  PLC controller with touch screen provides an intuitive graphical interface and real time process representation.
2.  Flexible shelf architecture allows processing of a wide variety of part carriers in either direct or downstream plasma mode.
3.  The 13.56 MHz power supply has automatic impedance matching for unparalleled process reproducibility.
4.  Proprietary software control system generates process and production data for statistical process Control.


资料下载

等离子清洗机

Nordson March AP300/AP600

AP300/AP600

销售区域:All

1.  Touch screen control and graphical user interface give real-time process information
2.  Flexible shelf architecture allows process of a wide variety of piece parts, components or carriers
3.  13.56MHzRF generator with automatic matching network delivers excellent process repeatability.
4.  Convenient facility hook-ups for periodic calibration requirement used in validation process.


资料下载

等离子清洗机

Nordson March Flextrak-CD

Flextrak-CD

销售区域:All

1.  Highly uniform plasma with fast treatment rates
2.  Production-ready strip handling system
3.  Easy-to-use touch screen graphical user interface (GUI)
4.  Service components accessible via front pull-out shelves
5.  High throughput, small footprint, low cost of ownership


资料下载

等离子清洗机

Nordson March Fastrak

Fastrak

销售区域:All

1.  Flexible configuration accommodates the full range of strip dimensions and magazine designs
2.  Advanced robotic handling system minimizes strip handling, pushing, pulling and reduces operator intervention
3.  New camera-based material tracking provides 100% plasma treatment validation
4.  High-efficiency, application specific, plasma chamber design offers Direct or Ion Free plasma treatment modes
5.  Significantly smaller system footprint and magazine reuse capability save space and help lower cost of ownership


资料下载

X射线检查机

Nordson DAGE Ruby X 射线检测机

XD7600NT FP

销售区域:All

1.    适用于免维护密封传送型DAGE-NT-500X射线管,最高160KV管电压及 10W标靶功率
2.    特征分辨率<0.5um (500nm), 可选配UCT(3D 检测), X-Plane ™和加配显 示器
3.    使用Nordson DAGE 200 万像素@ 25fps的CMOS 平板探测器可实现实时 模式影像增强功能且使用寿命较长
4.    内置(X 射线图像稳定器)防震动控制处理系统
5.    2500倍几何放大倍率,5200倍系统放大倍率, 共计15600倍数字变焦倍率
6.    保持放大倍率不变的情况下最大可达到70°倾斜角
7.    最大样品尺寸 :29” x 22.8” (736 x 580mm),47” x 26”的电路板尺寸也可供选择。



资料下载

X射线检查机

Nordson DAGE Diamond X 射线检测机

XD7600ND FP

销售区域:All

1.    适用于免维护密封传送型DAGE NT-100X射线管,最高160KV管电压及10W标靶功率
2.    特征分辨率<0.1um并可选配uCT (3D 检测)& X-Plane ™功能
3.    使用Nordson DAGE 300 万像素@ 25fps的CMOS 平板探测器可实现实时模式影像增强功能且使用寿命较长
4.    内置(X 射线图像稳定器)防震动控制处理系统和24” 主显&加配TFT-LED 显示器
5.    2500倍几何放大倍率,7100倍系统放大倍率, 共计35000倍数字变焦倍率
6.    保持放大倍率不变的情况下最大可达到70°倾斜角
7.    最大样品尺寸 :29” x 22.8” (736 x 580mm)



资料下载

X射线检查机

Nordson DAGE JadeFP X 射线检测机

XD7600NT FP

销售区域:All

1.    适用于DAGE VR950 开发,透射式X光管,最高160KV管电压及3W标靶功率
2.    特征分辨率<0.95 (950nm)
3.    使用Nordson DAGE 133 万像素@ 10fps的CMOS 平板探测器可实现实时模式影像增强功能且使用寿命较长
4.    内置(X 射线图像稳定器)防震动控制处理系统
5.    1400倍几何放大倍率,4200倍系统放大倍率
6.    保持放大倍率不变的情况下最大可达到65°倾斜角
7.    最大样品尺寸 :29” x 22.8” (736 x 580mm)




资料下载

粘合测试

Nordson DAGE 4000

4000

销售区域:All

1.    Dage4000推拉力测试系统用于半导体或光电,电路板组装业。适用于所有的 Pull拉力和 Shear 推力测试,可达到高精度,高重复性,高再现性。
2.    摇杆操作,简便易学;
3.    马达驱动 X,Y 工作台;
4.    适用于半导体各种封装形式测试金铝线黏合力;及COB封装、光电,LED,SMT组装 , 原件与基板黏合测试。





资料下载

粘合测试

Nordson DAGE 4000plus

4000plus

销售区域:All

1.  High versatile


2.  Switch applications in just seconds


3.  Increased efficiency


4.  Ultimate step back accuracy


5.  Ultimate correlation


6.  Intelligent software



资料下载

粘合测试

Nordson DAGE 4000 Optima

4000 Optima

销售区域:All

1.  Fastest and most accurate bond tester

2.  Ultimate speed and flexibility

3.  Extensive application capability


资料下载

自动光学检测仪

TTVision F220

F220

销售区域:All

1.  High Speed Inspection Head for Higher Throughput


2.  Lower Cost $ per unit LED


3.  Faster Return-of-Investment (ROI)


4.  Multi Wires on Multi Dice Inspection for more device configuration


5.  Foreign Material Inspection (Optional)


6.  Simplified Angle View Setup


7.  Simplified Recipe Setup


8.  Reinforced Machine Base for Lower Vibration






资料下载

发光二极管

NSW点胶机

1DRA-251

销售区域:All

1.    高解析度CCD图像扫描系统,有进行料片位子校正和辨认入料方向等功能。

2.    拼图技术智慧型扫描功能 – 可排除缺料点胶和解决后段设备卡料等问题。

3.    点胶阀体配搭胶针位置校正、清胶、监视等功能,操控人性化。

4.    诺配搭NSW 特制精密、高速点胶阀PP2D,可实现翻倍的实际产能。

5.    多功能点胶模式 - 提高 LED 封装可靠性、性能和材料利用率。

6.    Ndisp3 软体操控界面,性能现代化且适用于多类产品变化性生产。

7.    机身体积较小而且节省车间占据空间,发挥“空间小用意大”的作用。



资料下载

倒装芯片/球栅阵列(封装)

SSP植球机

BPS-7200FC

销售区域:All

1.   Multiple Magazine Loader (3~6 Magazines)

2.   Automatic Strip Width Conversion (Single & Matrix Boat)

3.   Mechanical Pre-alignment by Precise Jig

4.   X- Y -Z Position Control By Servo Motor

5.   Flux Squeegee & Pin Dotting Fluxing

6.   5 Vision Inspection System

(1) PCB PRS Vision (1.4M CCD)

(2) Auto Set-Up (1.4M CCD)

(3) Ball Volume Detect Vision (1.4M CCD)

(4) Ball Tool Inspection Vision (8M CCD)

(5) Ball Quality Inspection Vision (8M CCD)


资料下载
