Dispensing & Coating

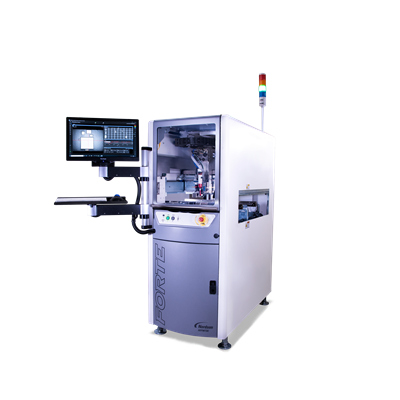

Nordson Forte Series Advanced Dispensing System

  • Improved cost-of-ownership, equivalent or better accuracy and 20-50% higher productivity over the top selling Spectrum® ll

  • Blazing speed for point-to-point moves – matching our most advanced fluid dispensing system at 1.5 G

  • Simultaneous dual-valve jetting – for higher speed, improved accuracy and patented* real-time skew correction

  • On and offline programming and simulation with Canvas® dispensing software

  • Maximized production floor efficiency with a space saving footprint

  • Reduced operator maintenance and intervention with standard integrated dual-valve service station, patented closed-loop process controls and nozzle cleaning rail

*Nordson US Patents 9,707,584 and 10,150,131 and other patents pending.

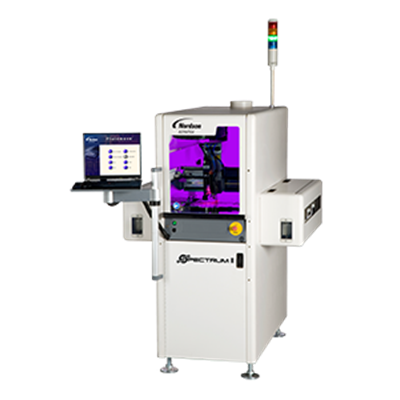

Spectrum II Premier S2-900P Fluid Dispensing System

●The Spectrum II Premier platform delivers precision, quality, and process controls for complex dispensing applications in semiconductor and mobile electronics packaging

●Pre-configured with the IntelliJet system, the ideal jet for the smallest dots and lines, highest frequency, and simplest maintenance

●Integrated Monocle™ Vision Package targets multiple dispense locations with an expansive, high-resolution field of view and 5-channels of independent light control

●Key features are standard on the Premier system, like Fids-on-the-Fly™ and wafer programming software, non-contact laser height sensing, and substrate heating

●The Premier delivers increased productivity for cutting-edge applications, such as wafer-level packaging, advanced camera module assembly, and underfill dispensing for high-density PCBs now and into the future

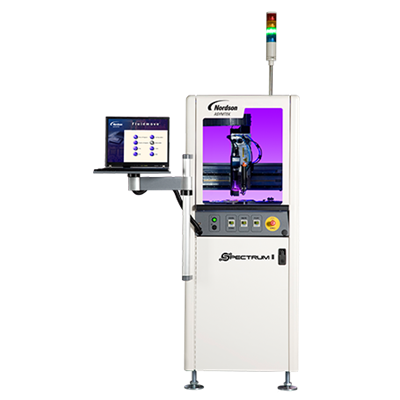

Nordson ASYMTEK Precision Fluid Dispensing System

Spectrum™ II S2-900 Series

1.    The Spectrum II series leverages over 30 years of Nordson ASYMTEK’s automated fluid dispensing and jetting technology

2.    Scalable design matches current and future requirements for maximum return on investment

3.    The Spectrum II series continues Nordson ASYMTEK’s market leadership with:

       ●  High precision X-Y-Z motion system

       ●  Total system wet dispense accuracy performance for dots and lines

       ●  Patented, closed-loop process controls for consistent dispense weight over long production runs

       ●  Independent X, Y, Z dual simultaneous valve dispensing option for increased productivity

       ●  Integrated vision system with on and off axis lighting options

       ●  Integrated substrate heating options for up to 6 stations

       ●  Programmable dual-axis tilt option
